F Series Expander

Application:

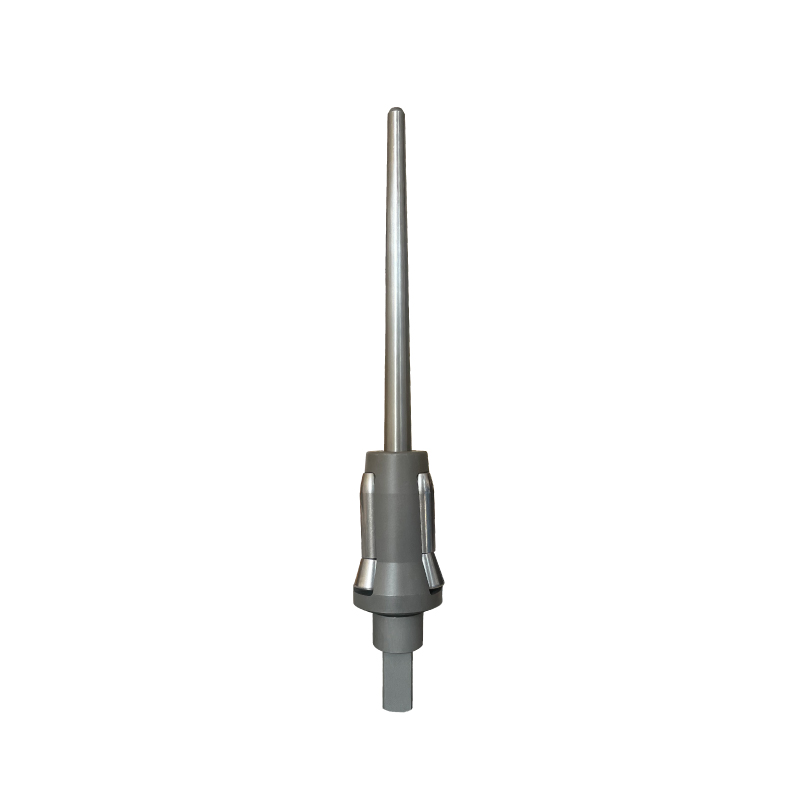

Lanbo’s F-Series Tube Expanders are self-feeding, specifically made for use in firetube and watertube boilers as well superheater and evaporator tubes. In only one operation, these expanders roll tubes parallel and flare projecting tube ends at 15 ~20 degrees from the tool center line.

Features:

Our F-Series expanders are available for tubes of diameter from 25.4mm to 101.6mm. The F-Series expanders are available in standard 3-Roll-3-Flare.

Note:

* Please contact our technical sales experts if 4-Roll-2-Flare or 3-Roll-1-Flare configuration is needed for your application.

*** Hexagonal Connector is available upon request, please contact our technical sales experts.

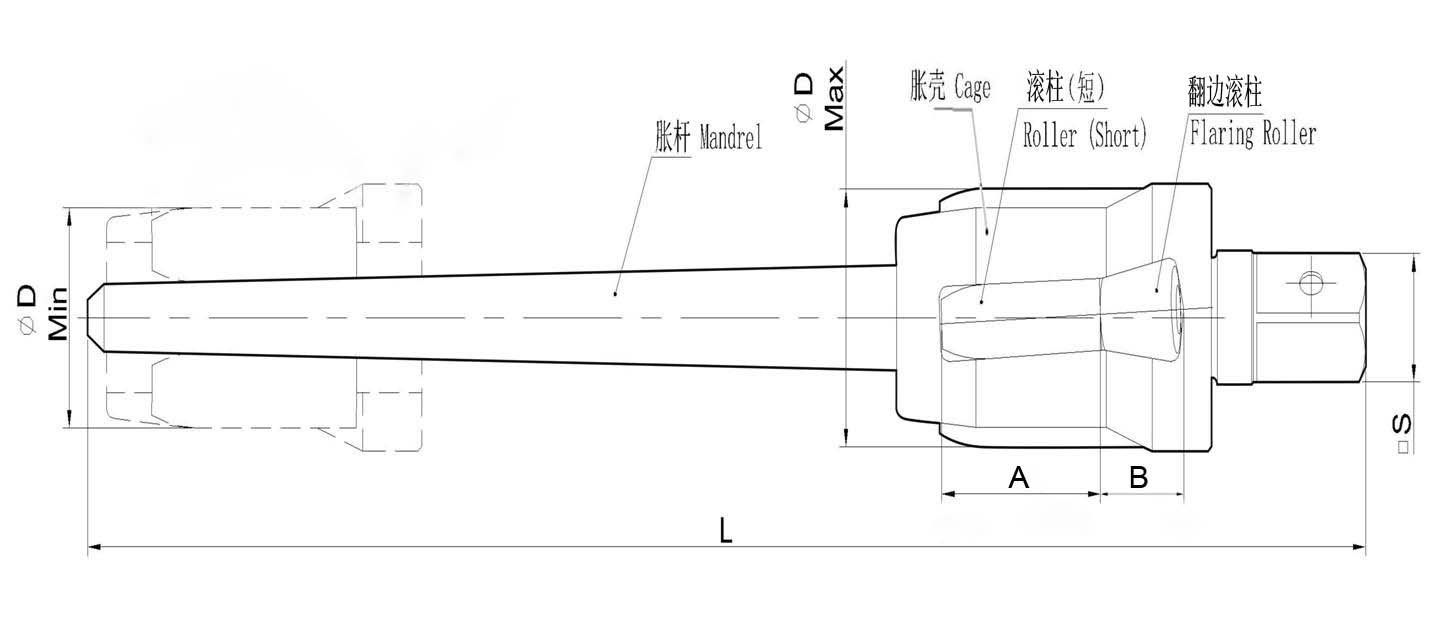

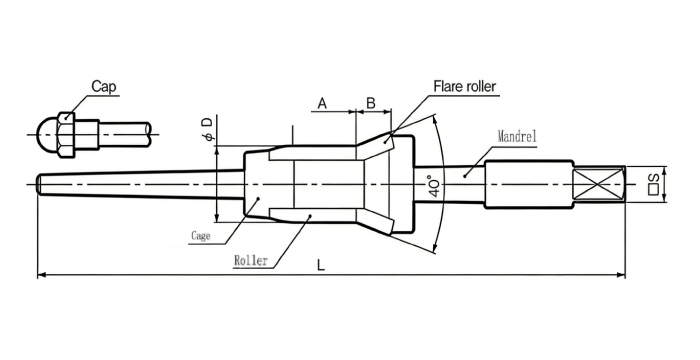

Expander size table(mm)

Tube Dimension		Expansion Range D														Part #	Flare Roller Length B	Square □ S (In)
Tube Dimension		Min.	Max.(Roller Effective Length)
OD(In)	Tube Wall	Min.	19	25.4	32	38	44.5	51	57	63.5	70	76	83	89	95
25.4 (1")	1.65	20.6	24.2	24.0	23.8	23.6	23.4	—	—	—	—	—	—	—	—	F28□□	12.7 (1/2")	12.7 (1/2")
	1.47	21.4	25.2	25.0	24.8	24.6	24.4	—	—	—	—	—	—	—	—	F29□□
	1.24	22.2	26.0	25.8	25.6	25.4	25.2	—	—	—	—	—	—	—	—	F30□□
31.8 (1-1/4")	3.40	23.0	26.8	26.6	26.4	26.2	26.0	—	—	—	—	—	—	—	—	F31□□
	3.05	23.8	27.6	27.4	27.2	27.0	26.8	26.6	26.3	—	—	—	—	—	—	F32□□
	2.77	24.6	28.4	28.2	28.0	27.8	27.6	27.4	27.1	—	—	—	—	—	—	F33□□
	2.41	25.4	30.0	29.8	29.6	29.4	29.2	29.0	28.7	28.5	—	—	—	—	—	F34□□
	2.11	26.2	30.8	30.6	30.4	30.2	30.0	29.8	29.5	29.3	—	—	—	—	—	F35□□
	1.83	27.0	31.6	31.4	31.2	30.9	30.7	30.5	30.3	30.1	—	—	—	—	—	F36□□
	1.47	27.8	32.4	32.2	32.0	31.7	31.5	31.3	31.1	30.9	—	—	—	—	—	F37□□
38.1 (1-1/2")	4.2	27.8	32.4	32.2	32.0	31.7	31.5	31.3	31.1	30.9	—	—	—	—	—	F37□□
	3.8	28.6	33.2	33.0	32.8	32.5	32.3	32.1	31.9	31.7	31.5	—	—	—	—	F38□□
	3.4	29.4	34.6	34.4	34.2	33.9	33.7	33.5	33.3	33.1	32.9	32.7	32.5	—	—	F39□□	19.0 (3/4")
	3.0	30.2	35.4	35.2	35.0	34.7	34.5	34.3	34.1	33.9	33.7	33.5	33.3	—	—	F40□□
	2.8	31.0	36.2	36.0	35.8	35.5	35.3	35.1	34.9	34.7	34.5	34.3	34.1	—	—	F41□□
	2.4	31.8	37.0	36.8	36.6	36.3	36.1	35.9	35.7	35.5	35.3	35.1	34.9	—	—	F42□□
	2.1	32.5	37.7	37.5	37.3	37.1	36.9	36.7	36.5	36.3	36.0	35.8	35.6	—	—	F43□□
	1.6~1.8	33.3	38.5	38.3	38.1	37.9	37.7	37.5	37.3	37.1	36.8	36.6	36.4	—	—	F44□□
44.5 (1-3/4")	4.20	34.1	40.1	39.9	39.7	39.5	39.3	39.1	38.9	38.7	38.4	38.2	38.0	—	—	F45□□
	3.4~3.8	34.9	41.0	40.8	40.6	40.4	40.2	40.0	39.8	39.6	39.3	39.1	38.9	—	—	F48□□		19.0 (3/4")
	2.8~3.0	36.5	42.6	42.4	42.2	42.0	41.8	41.6	41.4	41.1	40.9	40.7	40.5	—	—	F49□□
	1.8~2.4	38.1	45.8	45.6	45.4	45.2	45.0	44.8	44.6	44.3	44.1	43.9	43.7	43.5	43.3	F50□□
50.8 (2")	4.6~5.2	38.1	45.8	45.6	45.4	45.2	45.0	44.8	44.6	44.3	44.1	43.9	43.7	43.5	43.3	F50□□
	3.8~4.2	39.7	47.4	47.2	47.0	46.8	46.6	46.4	46.2	45.9	45.7	45.5	45.3	45.1	44.9	F51□□
	3.0~3.4	41.3	49.0	48.8	48.6	48.4	48.2	47.9	47.7	47.5	47.3	47.1	46.9	46.7	46.5	F52□□
	2.4~2.8	42.9	50.6	50.4	50.2	50.0	49.8	49.5	49.3	49.1	48.9	48.7	48.5	48.3	48.1	F53□□
	2.1	44.5	52.2	52.0	51.8	51.6	51.4	51.1	50.9	50.7	50.5	50.3	50.1	49.9	49.7	F54□□
63.5 (2-1/2")	6.6	46.0	53.8	53.6	53.4	53.1	52.9	52.7	52.5	52.3	52.1	51.9	51.7	51.5	51.3	F55□□	19.0 (3/4")	19.0 (3/4")
	6.0	47.6	55.3	55.1	54.9	54.7	54.5	54.3	54.1	53.9	53.7	53.5	53.2	53.0	52.8	F56□□
	5.2~5.6	49.2	56.9	56.7	56.5	56.3	56.1	55.9	55.7	55.5	55.3	55.1	54.8	54.6	54.4	F57□□
	4.6	50.8	58.5	58.3	58.1	57.9	57.7	57.5	57.3	57.1	56.8	56.6	56.4	56.2	56.0	F58□□
	3.8~4.2	52.4	60.1	59.9	59.7	59.5	59.3	59.1	58.9	58.6	58.4	58.2	58.0	57.8	57.6	F59□□
	3.0~3.4	54.0	61.7	61.5	61.3	61.1	60.9	60.6	60.4	60.2	60.0	59.8	59.6	59.4	59.2	F60□□
	2.4~2.8	55.6	63.3	63.1	62.9	62.7	62.5	62.2	62.0	61.8	61.6	61.4	61.2	61.0	60.8	F61□□
	2.1	57.2	—	66.0	65.8	65.5	65.3	65.1	64.8	64.6	64.4	64.1	63.9	63.7	63.5	F62□□
76.2 (3")	7.2~7.6	57.2	—	66.0	65.8	65.5	65.3	65.1	64.8	64.6	64.4	64.1	63.9	63.7	63.5	F62□□
	6.6	58.7	—	67.6	67.4	67.1	66.9	66.7	66.4	66.2	65.9	65.7	65.5	65.2	65.0	F63□□
	6.0	60.3	—	69.2	69.0	68.7	68.5	68.3	68.0	67.8	67.5	67.3	67.1	66.8	66.6	F64□□
	5.2~5.6	61.9	—	70.8	70.5	70.3	70.1	69.8	69.6	69.4	69.1	68.9	68.7	68.4	68.2	F65□□
	4.6	63.5	—	72.3	72.1	71.9	71.6	71.4	71.2	70.9	70.7	70.5	70.2	70.0	69.8	F66□□
	3.8~4.2	65.1	—	73.9	73.7	73.5	73.2	73.0	72.8	72.5	72.3	72.0	71.8	71.6	71.4	F67□□
	3.4	66.7	—	75.5	75.3	75.0	74.8	74.6	74.3	74.1	73.9	73.6	73.4	73.2	73.0	F68□□		25.4 (1")
	2.4~2.8	68.3	—	77.1	76.9	76.6	76.4	76.2	75.9	75.7	75.5	75.2	75.0	74.8	74.6	F69□□		25.4 (1")

Note：1. Model examples of F-Type tube expanders

Example：F62□□——F：Expander Type

62：Tool Number

：Effective roller length part number（See below table）

Effective Roller Length A	19	25.4	32	38	44.5	51	57	63.5	70	76	83	89	95
Effective Roller Length Number	00	01	02	03	04	05	06	07	08	09	10	11	12

2. Expander with an F expander number of 39 or higher have a retainer in the cage, the rollers will not fall out even if the mandrel is removed.

3. Other sizes expanders are available upon request.
