Rolling Thick-Wall and Large-Diameter Steel Tubes
Large, thick-wall carbon and alloy steel tubes need more torque than standard tube rollers deliver. Use a large-tube electric roller or a hydraulic tube roller.
Common causes
- Tube size and wall need more torque than the tool can deliver
- The operator cannot hold the reaction torque steadily
How to diagnose
- Compare tube OD and wall with the tube roller's rated range
- The tool stalls or slows sharply during rolling
How to fix it
- Φ45–Φ159 mm thick-wall tubes: DZ-C large-tube electric tube rollers
- High torque or hazardous areas: HD series hydraulic tube rollers

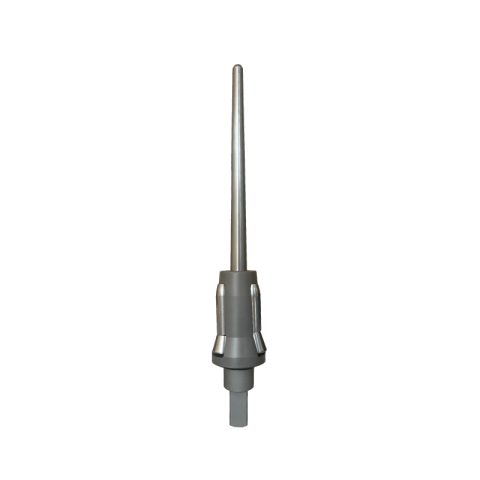

- Rolling and flaring in one pass: F series flaring expanders
- Use a balancing arm or reaction arm to take the reaction torque
What to send us
- Tube material, OD and wall thickness (mm or BWG)
- Tubesheet thickness and hole size
- Number of tubes; site conditions (power or air supply, hazardous area)
- Required delivery date or outage dates
FAQ
What tool rolls large-diameter steel tubes?
DZ-C large-tube electric tube rollers cover Φ45–Φ159 mm thick-wall tubes; HD hydraulic tube rollers suit higher torque or hazardous areas.
Products
Tools for this job
Electric Tube Rollers

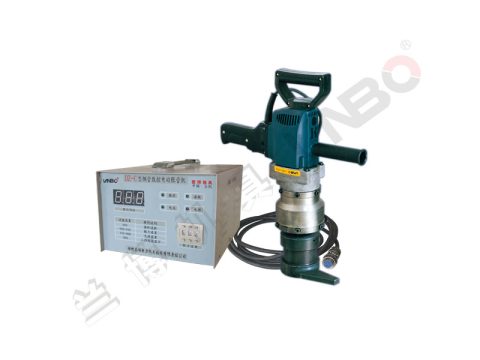

DZ-C 76 Electric Tube Roller
- Tube OD: Φ45–Φ76 mm
- Output torque: 1200 N·m / 885 ft·lbf
- Motor weight: 6.3 kg
Electric Tube Rollers

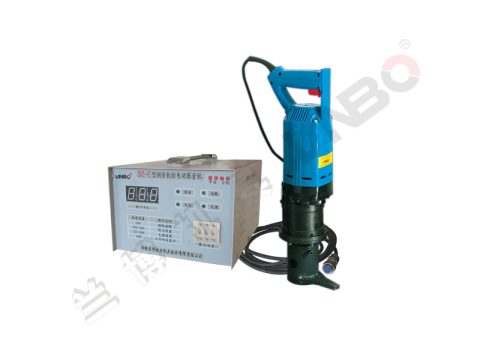

DZ-C 108 Electric Tube Roller
- Tube OD: Φ76–Φ108 mm
- Output torque: 2000 N·m / 1475 ft·lbf
- Motor weight: 13 kg
Electric Tube Rollers

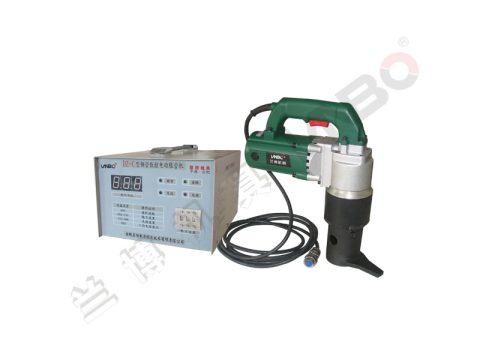

DZ-C 159 Electric Tube Roller
- Tube OD: Φ109–Φ159 mm
- Output torque: 3500 N·m / 2581 ft·lbf
- Motor weight: 19 kg
Hydraulic Tube Rollers

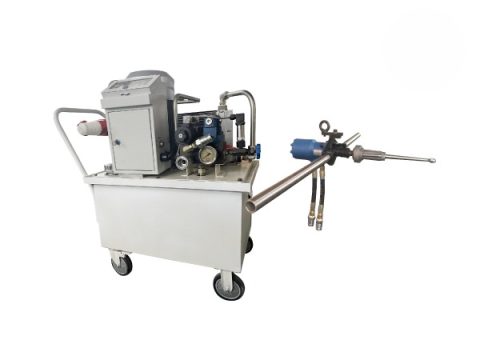

HyDrive Series Hydraulic Explosion-Proof Tube Roller
- Tube OD: φ25.4–114.3 mm
- Torque range: 64–1030 N·m / 47.2–760 ft·lbf
- Motor weight: 12–28 kg
Rolling Accessories & Gauges

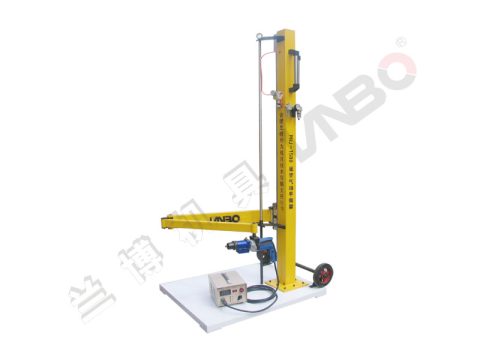

PHJ-1500 Pneumatic Balancing Stand
- Travel: 1500 mm on each of X / Y / Z
- Reaction torque capacity: 150 N·m / 111 ft·lbf
- Air pressure: 0.6 MPa
