Application:

Rolling ferrous tubes with Large Diameter (76mm to 108mm) and/or thick tube walls.

Our DZ-C 108 tube roller is ideal for stainless steel, carbon steel and alloy steel tubes.

This equipment is widely used to expand tubes used in petroleum, chemical, boiler, and ship manufacture industries.

Features:

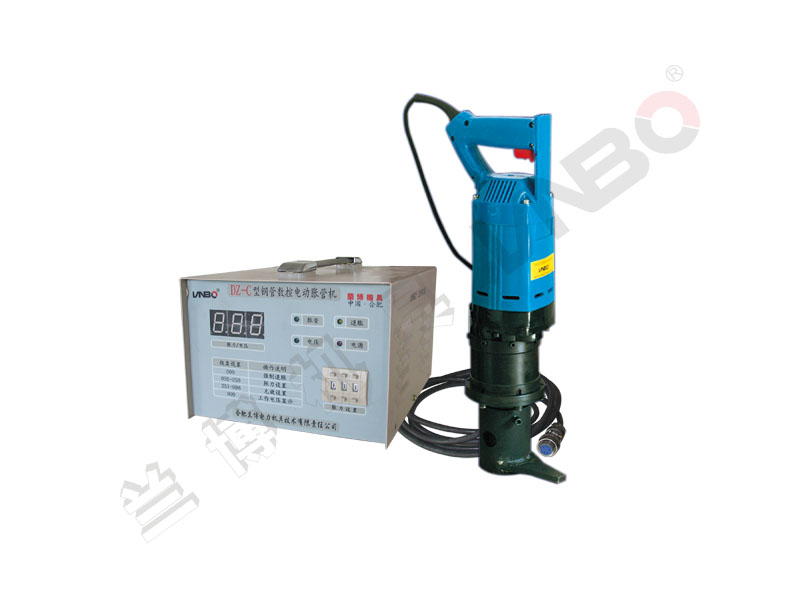

Motor torque can be set on the electronic torque control box, while the motor will drive the tube expander forward, stall and reverse automatically when the pre-selected torque is reached.

The DZ-C 108 tube rolling motors come with dead handles for added leverage.

Kitincludes:

Electronic Torque Control Box

Electric Rolling Motor

Mandrel Connector

Counter-lever Dead Handle

Assist Handle

Motor Brush

Control Box Fuse

Technical Overview:

Model

Tube Material

Tube Capacities OD(mm)

Tube wall thickness (mm)

Expanding Rate

(%)

Output Torque

(Nm)

Input Power

(w)

Rated Speed

(r/min)

Rolling Motor Weight

(kg)

DZ-C 108

Carbon Steel,

Stainless Steel,

Alloy Steel

Φ76-Φ108

4-8

2-8

2000

880

Note:

1. Single Phase, Supply voltage 220V±10%, Frequency 50Hz-60Hz.

2. Auto-Reverse when selected torque is reached.

3. Equipped with manual reverse buttons.
