Refinery and Petrochemical Heat Exchanger Maintenance
Rolling in hazardous areas, thick-wall tubes and flared joints, plus tube end leak testing and pipe beveling: explosion-proof air and hydraulic tube rollers and large-tube rollers.
Typical jobs
- Turnarounds in areas with flammable or explosive media, where tools must be spark-free
- Rolling thick-wall carbon steel and alloy tubes at high torque
- Waste heat boilers and steam generators that need flared joints
- Weld preparation and in-line cutting of pipe
Recommended tools
- HD series hydraulic tube rollers: explosion-proof versions available, 64–1030 N·m
- 850 series air-driven tube rollers: spark-free, stop automatically at the set torque
- DZ-C electric tube rollers for large thick-wall tubes, Φ45–Φ159 mm
- F series flaring expanders: roll and flare in one pass
- GPN / GPK ID-mounted beveling machines and OE OD-mounted cutting and beveling machines
What we need to know
- Tube material, OD, wall thickness and tubesheet thickness
- Hazardous-area rating; air or power supply on site
- Number of tubes and schedule
Products
Recommended equipment
Hydraulic Tube Rollers
HyDrive Series Hydraulic Explosion-Proof Tube Roller
- Tube OD: φ25.4–114.3 mm
- Torque range: 64–1030 N·m / 47.2–760 ft·lbf
- Motor weight: 12–28 kg
Air-Driven & Explosion-Proof Tube Rollers

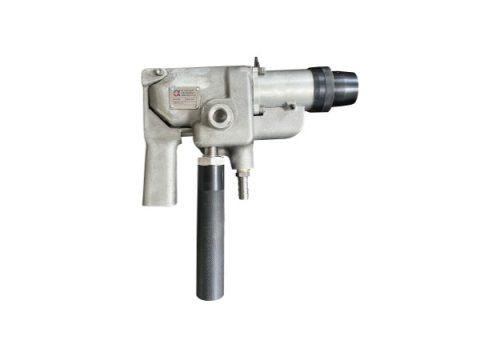

850 Series Air-Driven Explosion-Proof Tube Rollers
- Torque range: 2.49–35.6 N·m / 1.8–26.3 ft·lbf
- Speed: 400–1100 rpm
- Weight: 4.76 kg
Electric Tube Rollers
DZ-C 76 Electric Tube Roller
- Tube OD: Φ45–Φ76 mm
- Output torque: 1200 N·m / 885 ft·lbf
- Motor weight: 6.3 kg
Electric Tube Rollers
DZ-C 108 Electric Tube Roller
- Tube OD: Φ76–Φ108 mm
- Output torque: 2000 N·m / 1475 ft·lbf
- Motor weight: 13 kg
Electric Tube Rollers
DZ-C 159 Electric Tube Roller
- Tube OD: Φ109–Φ159 mm
- Output torque: 3500 N·m / 2581 ft·lbf
- Motor weight: 19 kg
Pipe Beveling & Cutting

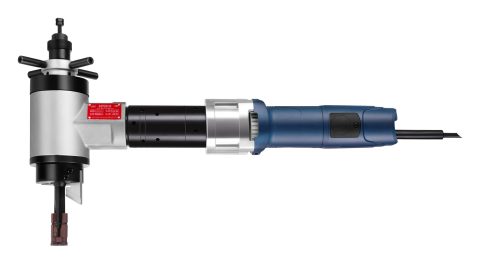

GPN Electric Beveling Machine
- Range: φ15–φ630 mm (9 models)
- Wall thickness: ≤ 20 mm
- Drive: Electric GPN / pneumatic GPK
Pipe Beveling & Cutting

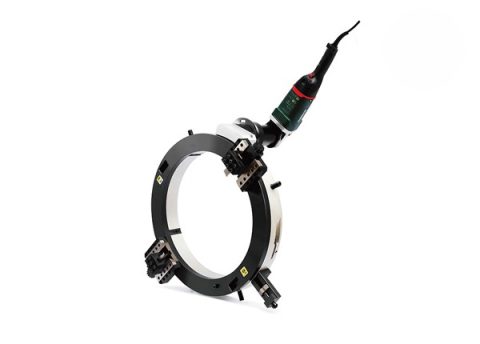

External Clamp Electric Pipe Cutting and Beveling Machine
- Range: φ25–φ1230 mm (18 models)
- Wall thickness: ≤ 30 mm
- Frame: Split frame, in-line mounting
Vacuum Leak Detectors
Vacuum Joint Leak Detector (VJLD)
- Tube size: 9.52–31.75 mm（3/8"–1.25"）
- Compressed air: 0.6 MPa，285 L/min
- Weight: 1.5 kg
Talk to an engineer
Tell us about your project
We'll recommend the equipment, estimate the schedule and, if required, provide a field crew.
