F系列翻边胀管器

分为四珠双翻，三珠三翻，三珠单翻等多种规格。适用于38.1mm至72.6mm各类压力容器管路胀接。

使用范围包括锅炉水管，火管，高压加热器，节炭器等各类热交换器。

尺寸参数表(mm)

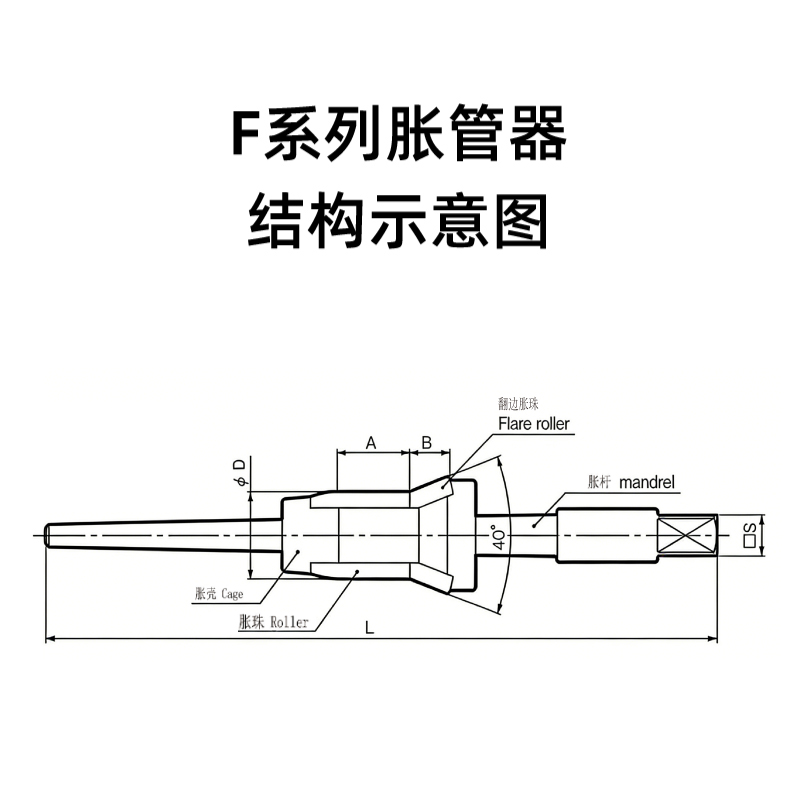

F系列胀管器结构示意图：

尺寸参数表(mm)

散热管尺寸		胀管范围D														产品型号	翻边滚柱长度 B	四方尺寸 □ S (In)
散热管尺寸		最小	最大(滚柱有效长度)
外径(In)	壁厚	最小	19	25.4	32	38	44.5	51	57	63.5	70	76	83	89	95
25.4 (1")	1.65	20.6	24.2	24.0	23.8	23.6	23.4	—	—	—	—	—	—	—	—	F28□□	12.7 (1/2")	12.7 (1/2")
	1.47	21.4	25.2	25.0	24.8	24.6	24.4	—	—	—	—	—	—	—	—	F29□□
	1.24	22.2	26.0	25.8	25.6	25.4	25.2	—	—	—	—	—	—	—	—	F30□□
31.8 (1-1/4")	3.40	23.0	26.8	26.6	26.4	26.2	26.0	—	—	—	—	—	—	—	—	F31□□
	3.05	23.8	27.6	27.4	27.2	27.0	26.8	26.6	26.3	—	—	—	—	—	—	F32□□
	2.77	24.6	28.4	28.2	28.0	27.8	27.6	27.4	27.1	—	—	—	—	—	—	F33□□
	2.41	25.4	30.0	29.8	29.6	29.4	29.2	29.0	28.7	28.5	—	—	—	—	—	F34□□
	2.11	26.2	30.8	30.6	30.4	30.2	30.0	29.8	29.5	29.3	—	—	—	—	—	F35□□
	1.83	27.0	31.6	31.4	31.2	30.9	30.7	30.5	30.3	30.1	—	—	—	—	—	F36□□
	1.47	27.8	32.4	32.2	32.0	31.7	31.5	31.3	31.1	30.9	—	—	—	—	—	F37□□
38.1 (1-1/2")	4.2	27.8	32.4	32.2	32.0	31.7	31.5	31.3	31.1	30.9	—	—	—	—	—	F37□□
	3.8	28.6	33.2	33.0	32.8	32.5	32.3	32.1	31.9	31.7	31.5	—	—	—	—	F38□□
	3.4	29.4	34.6	34.4	34.2	33.9	33.7	33.5	33.3	33.1	32.9	32.7	32.5	—	—	F39□□	19.0 (3/4")
	3.0	30.2	35.4	35.2	35.0	34.7	34.5	34.3	34.1	33.9	33.7	33.5	33.3	—	—	F40□□
	2.8	31.0	36.2	36.0	35.8	35.5	35.3	35.1	34.9	34.7	34.5	34.3	34.1	—	—	F41□□
	2.4	31.8	37.0	36.8	36.6	36.3	36.1	35.9	35.7	35.5	35.3	35.1	34.9	—	—	F42□□
	2.1	32.5	37.7	37.5	37.3	37.1	36.9	36.7	36.5	36.3	36.0	35.8	35.6	—	—	F43□□
	1.6~1.8	33.3	38.5	38.3	38.1	37.9	37.7	37.5	37.3	37.1	36.8	36.6	36.4	—	—	F44□□
44.5 (1-3/4")	4.20	34.1	40.1	39.9	39.7	39.5	39.3	39.1	38.9	38.7	38.4	38.2	38.0	—	—	F45□□
	3.4~3.8	34.9	41.0	40.8	40.6	40.4	40.2	40.0	39.8	39.6	39.3	39.1	38.9	—	—	F48□□		19.0 (3/4")
	2.8~3.0	36.5	42.6	42.4	42.2	42.0	41.8	41.6	41.4	41.1	40.9	40.7	40.5	—	—	F49□□
	1.8~2.4	38.1	45.8	45.6	45.4	45.2	45.0	44.8	44.6	44.3	44.1	43.9	43.7	43.5	43.3	F50□□
50.8 (2")	4.6~5.2	38.1	45.8	45.6	45.4	45.2	45.0	44.8	44.6	44.3	44.1	43.9	43.7	43.5	43.3	F50□□
	3.8~4.2	39.7	47.4	47.2	47.0	46.8	46.6	46.4	46.2	45.9	45.7	45.5	45.3	45.1	44.9	F51□□
	3.0~3.4	41.3	49.0	48.8	48.6	48.4	48.2	47.9	47.7	47.5	47.3	47.1	46.9	46.7	46.5	F52□□
	2.4~2.8	42.9	50.6	50.4	50.2	50.0	49.8	49.5	49.3	49.1	48.9	48.7	48.5	48.3	48.1	F53□□
	2.1	44.5	52.2	52.0	51.8	51.6	51.4	51.1	50.9	50.7	50.5	50.3	50.1	49.9	49.7	F54□□
63.5 (2-1/2")	6.6	46.0	53.8	53.6	53.4	53.1	52.9	52.7	52.5	52.3	52.1	51.9	51.7	51.5	51.3	F55□□	19.0 (3/4")	19.0 (3/4")
	6.0	47.6	55.3	55.1	54.9	54.7	54.5	54.3	54.1	53.9	53.7	53.5	53.2	53.0	52.8	F56□□
	5.2~5.6	49.2	56.9	56.7	56.5	56.3	56.1	55.9	55.7	55.5	55.3	55.1	54.8	54.6	54.4	F57□□
	4.6	50.8	58.5	58.3	58.1	57.9	57.7	57.5	57.3	57.1	56.8	56.6	56.4	56.2	56.0	F58□□
	3.8~4.2	52.4	60.1	59.9	59.7	59.5	59.3	59.1	58.9	58.6	58.4	58.2	58.0	57.8	57.6	F59□□
	3.0~3.4	54.0	61.7	61.5	61.3	61.1	60.9	60.6	60.4	60.2	60.0	59.8	59.6	59.4	59.2	F60□□
	2.4~2.8	55.6	63.3	63.1	62.9	62.7	62.5	62.2	62.0	61.8	61.6	61.4	61.2	61.0	60.8	F61□□
	2.1	57.2	—	66.0	65.8	65.5	65.3	65.1	64.8	64.6	64.4	64.1	63.9	63.7	63.5	F62□□
76.2 (3")	7.2~7.6	57.2	—	66.0	65.8	65.5	65.3	65.1	64.8	64.6	64.4	64.1	63.9	63.7	63.5	F62□□
	6.6	58.7	—	67.6	67.4	67.1	66.9	66.7	66.4	66.2	65.9	65.7	65.5	65.2	65.0	F63□□
	6.0	60.3	—	69.2	69.0	68.7	68.5	68.3	68.0	67.8	67.5	67.3	67.1	66.8	66.6	F64□□
	5.2~5.6	61.9	—	70.8	70.5	70.3	70.1	69.8	69.6	69.4	69.1	68.9	68.7	68.4	68.2	F65□□
	4.6	63.5	—	72.3	72.1	71.9	71.6	71.4	71.2	70.9	70.7	70.5	70.2	70.0	69.8	F66□□
	3.8~4.2	65.1	—	73.9	73.7	73.5	73.2	73.0	72.8	72.5	72.3	72.0	71.8	71.6	71.4	F67□□
	3.4	66.7	—	75.5	75.3	75.0	74.8	74.6	74.3	74.1	73.9	73.6	73.4	73.2	73.0	F68□□		25.4 (1")
	2.4~2.8	68.3	—	77.1	76.9	76.6	76.4	76.2	75.9	75.7	75.5	75.2	75.0	74.8	74.6	F69□□		25.4 (1")

注：1、F型胀管器型号示例
例：F62□□——F：胀管器型号

62：胀管器编号

□□：胀珠有效长度编号（见下表）

滚珠有效长度A	19	25.4	32	38	44.5	51	57	63.5	70	76	83	89	95
滚珠有效长度编号	00	01	02	03	04	05	06	07	08	09	10	11	12

2、F39号以上的胀管器有内护圈，拔出心轴滚柱也不会脱落。

3、本公司还生产上述尺寸以外的胀管器。
