XR Series Tube Roller
The XR series Tube Rollers is Designed with Our Users in Mind. Equipped with Articulated Telescopic Shaft and Powered by Brushless Servo Motor, it provides accurate tube rolling performance with minimum effort and zero maintenance.
Specifications:
Max Torque = 50 to 350Nm (36.8 ft-lbf to 258 ft-lbf)
Max Speed = 285 to 666 RPM
Working Window = 1000 * 1000 mm (39.4*39.4 inch)
Power Supply = 380 - 400V 3-phase
For Tube OD = 1/2 to 4 inch
Custom Solutions Available for Your Projects.

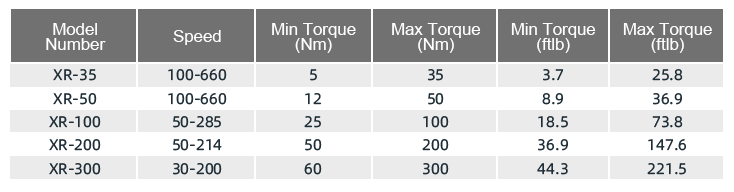

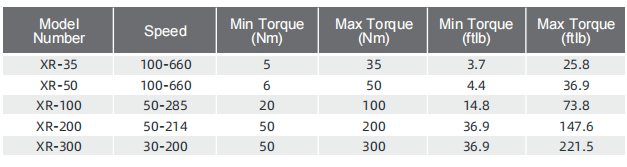

Model Specs
o Motored Vertical Adjustment, Free Horizontal Positioning
o Articulated Telescopic Shaft enables Single Hand Operation
o No Torque Felt by Operator
o High Mobility with 4 Lockable Casters
o Brushless Servo Motor with IP65 Rating
o Extra Safety with No Motor Spark
o Brushless Motor with No Maintenance Required
o Precise and Accurate Closeloop Torque Control
o Expansion Data Live Display with USB Backup Function
