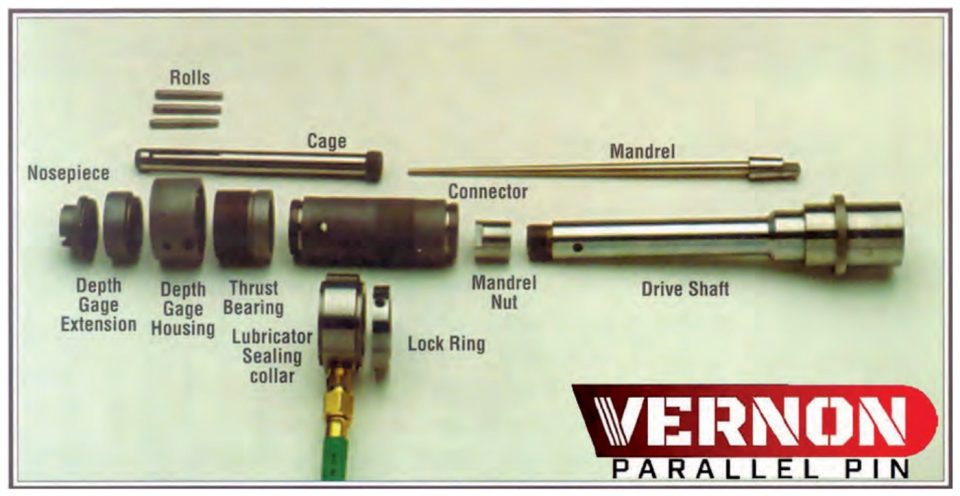

Vernon S 型平行销胀管器（1/2–2 in）
Vernon 液压胀管系统用 S 型胀管器，管外径 1/2–2 in，按管外径和 BWG 选型。
管外径1/2–2 in
产品特点
- 配 Vernon 液压胀管系统使用
- 部分规格需配 1/2 in 连接延长件
技术参数
| 外径 | BWG | 平均内径 | 有效胀珠长度 | 最大胀接深度 | 胀管器零件号 | 最小直径 | 最大直径 | 胀珠组零件号 | 胀杆零件号 | 壳体零件号 | 延长件 | 导头 | Thrust Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2” | 14 16 17 18 19 20 | 0.384 0.370 0.384 0.402 0.418 0.430 | 1-1/8” 1-3/16” | 5” | 4-14S 4-16S 5-11S 4-18S 4-18S 5-13S | 0.324 0.360 0.373 0.393 0.393 0.426 | 0.374 0.422 0.435 0.455 0.455 0.485 | 001S 1/2S 1/2S 0S 0S 1A | 4S 3S 5S | L5 | ES | 4NP | LTB-3/4 |
| 5/8” | 11 12 13 14 15 16 17 18 *19 20 | 0.385 0.407 0.435 0.459 0.481 0.495 0.509 0.527 0.541 0.555 | 1-1/8” 1-3/16” 1-7/16” | 5” 5-1/2” | 5-11S 5-12S 5-13S* 5-14S 5-15S 5-16S 5-17S 5-18S 5-18S* 6-13S | 0.373 0.393 0.426 0.453 0.462 0.472 0.490 0.512 0.512 0.534 | 0.435 0.455 0.485 0.515 0.525 0.537 0.553 0.575 0.575 0.611 | 1/2S 0S 1A 2S 3S 4S 5S 6S 6S 9S | 3S 5S 6S | L5 | E5 | 5NP | LTB-3/4 |
| 5/8” | 21 22 | 0.561 0.569 | 1-7/16” | 5-1/2” | 6-13S 6-13S | 0.534 0.534 | 0.611 0.611 | 9S 9S | 6S | LS | E5 | 5NP | LTB-3/4 |
| 3/4” | 10 11 12 13 14 15 16 17 18 19 20 21 22 | 0.482 0.510 0.532 0.560 0.584 0.606 0.620 0.634 0.652 0.666 0.680 0.686 0.964 | 1-3/16” 1-7/16” | 5” | 5·15S 5-17S 5-18S 6-13S 6·14S 6·15S 6·16S 6-17S 6-18S 6·18S 6·20S 6-20S 6·20S | 0.462 0.490 0.512 0.534 0.550 0.574 0.598 0.610 0.626 0.626 0.650 0.650 0.650 | 0.525 0.553 0.575 0.611 0.627 0.651 0.675 0.687 0.703 0.703 0.727 0.727 0.727 | 3S 5S 6S 9S 10S 11S 12S 9S 10S 10S 11S 11S 11S | 5S 6S 8S | L6 | E6 | 6NP | LTB·3/4 |
| 7/8” | 9 10 11 12 13 14 15 16 17 18 19 20 21 22 | 0.579 0.607 0.635 0.657 0.685 0.709 0.731 0.745 0.759 0.777 0.791 0.805 0.811 0.819 | 1-7/16” | 5-1/2” | 6·14S 6-15S 6-17S 6-18S 8-9S 8-9S 8-10S 8-11S 8·11S 8·12S 8-13S 8-13S 8-13S 8·14S | 0.550 0.574 0.610 0.626 0.668 0.680 0.700 0.724 0.724 0.773 0.766 0.766 0.766 0.800 | 0.627 0.651 0.687 0.703 0.730 0.742 0.762 0.787 0.787 0.835 0.843 0.843 0.843 0.877 | 10S 11S 9S 10S 13S 14S 15S 15S 16S 20S 18S | 6S 8S 7S 8S | L6 | E6 | 7NP | LTB·¾ |
| 1” | 8 9 10 11 12 | 0.670 0.704 0.732 0.760 0.782 | 1-7/16” | 5-1/2” | 8-8S 8·9S 8-10S 8·11S 8·12S | 0.650 0.680 0.700 0.724 0.773 | 0.712 0.742 0.762 0.787 0.835 | 12½ S 13S 14S 15S 16S | 7S | L8 | E8 | 8NP | LTB-¾ |
| 1” | 13 14 15 16 17 18 19 20 21 22 | 0.810 0.834 0.856 0.870 0.884 0.902 0.916 0.930 0.936 0.944 | 1-7/16” | 5-1/2” | 8-13S 8-14S 8-15S 8-16S 8-18S 8-18S 8-18S 8-20S 8-20S 8-20S | 0.766 0.800 0.823 0.844 0.869 0.881 0.881 0.901 0.901 0.901 | 0.843 0.877 0.900 0.921 0.946 0.958 ,958 0.978 0.978 0.978 | 20S 18S 19S 20S 18S 19S | 8S 8S 8S 10S | L8 | E8 | 8NP | LTB-3/4 |
| 1-1/8” | 8 9 10 11 12 13 14 15 16 17 18 | 0.795 0.829 0.857 0.885 0.907 0.935 0.959 0.981 0.995 1.009 1.027 | 1-7/16” 2-1/4” | 5-1/2” | 8-13S 8-14S 8-15S 8-18S 8-18S 10-9S 10-9S 10-10S 10-11S 10-11S 10-12S | 0.766 0.800 0.823 0.869 0.881 0.923 0.923 0.944 0.975 0.975 0.999 | 0.843 0.877 0.900 0.946 0.958 1.000 1.000 1.017 1.052 1.052 1.076 | 20S 18S 19S 18S 21S 21S 22S 23S 24S | 8S 10S | LS | ES | 9NP | LTB-3/4 |
| 1-1/4” | 8 9 10 11 12 13 14 15 16 17 18 | 0.920 0.959 0.982 1.010 1.032 1.060 1.064 1.106 1.120 1.134 1.152 | 2-1/4” | 5-1/2” | 10-9S 10·9S 10-10S 10·11S 10-12S 10-14S 10-14S 10-16S 10·16S 10-17S 10-18S | 0.905 0.923 0.944 0.975 0.999 1.047 1.047 1.095 1.095 1.109 1.127 | 0.983 1.000 1.017 1,052 1.076 1.124 1.124 1.172 1.172 1.186 1.204 | 21S 22S 23S 24S 26S 28S 29S 30S | 10S | L8 | E8 | 10NP | LTB-3/4” |
| 1-3/8” | 8 9 | 1.045 1.079 | 2-1/4” | 5-1/2” | 10-12S 10-14S | .999 1.047 | 1.076 1.124 | 24S 26S | 10S | L8 | E8 | 10NP | LTB-3/4” |
| 1-3/8” | 10 11 12 13 14 15 16 | 1.107 1.135 1.157 1.185 1.209 1.231 1.245 | 2-1/8” | 5-1/2” | 10·16S 10-17S 10-13S 12-8S 12-10S 12-10S 12-11S | 1.095 1.109 1.127 1.161 1.200 1.200 1.226 | 1.172 1.186 1.204 1.238 1.277 1.277 1.303 | 28S 29S 30S 32S 33S 33S 34S | 10S | L8 | E8 | 11NP | LTB-3/4 |
| 1-1/2” | 8 9 10 11 12 13 14 15 16 17 18 19 20 | 1.170 1.204 1.232 1.260 1.282 1.310 1.334 1.356 1.370 1.384 1.402 1.416 1.430 | 2-1/8” | 5-1/2” | 12-8S 12-8S 12-10S 12-11S 12-12S 12-13S 12-14S 12-15S 12-16S 12-16S 12-18S 12-18S 14-9S | 1.161 1.161 1.200 1.226 1.250 1.266 1.303 1.326 1.340 1.340 1.374 1.374 1.419 | 1.238 1.238 1.277 1.303 1.327 1.343 1.380 1.403 1.417 1.417 1.451 1.451 1.579 | 32S 32S 33S 34S 35S 36S 37S 39S 40S 40S 42S 42S 40S-20 | 10S 12S | L8 | E8 | 12NP | LTB·3/4 LTB-1 |
| 1-5/8” | 8 9 10 11 12 13 14 15 16 | 1.295 1.329 1.357 1.385 1.407 1.435 1.459 1.481 1.495 | 2-1/8” | 5-1/2” | 12-13S 12-14S 12-15S 12-18S 12-18S 14-9S 14-9S 14-9S 14-9S | 1.266 1.303 1.326 1.374 1.374 1.419 1.419 1.419 1.419 | 1.343 1.380 1.403 1.451 1.451 1.579 1.579 1.579 1.579 | 36S 37S 39S 42S 40S-20 | 10S 12S | L8 L15 | E13 E14 | 13NP | LTB-3/4 LTB-1 |
| 1-3/4” | 9 10 11 | 1.454 1.482 1.510 | 2-1/8” | 5-1/2” | 14-9S 14-9S 14-11S | 1.419 1.419 1.491 | 1.579 1.579 1.651 | 40S-20 41S | 12S | L15 | E14 | 14NP | LTB-1 |
| 1-3/4” | 12 13 14 15 16 | 1.532 1.560 1.584 1.606 1.620 | 2-1/4” | 5-1/2” | 14-11S 14-11S 14-11S 14-16S 14-16S | 1.491 1.491 1.491 1.591 1.591 | 1.651 1.651 1.651 1.751 1.751 | 41S 46S | 12S | L15 | E14 | 14NP | LTB-1 |
| 1-7/8” | 8 9 10 11 12 13 14 15 16 | 1.545 1.579 1.607 1.635 1.657 1.685 1.709 1.731 1.745 | 2-1/4” | 5-1/2” 5-1/4” | 14-11S 14-11S 14-16S 14-16S 14-16S 16-9S 16-9S 16-9S 16·9S | 1.491 1.491 1.591 1.591 1.591 1.635 1.635 1.635 1.635 | 1.651 1.651 1.751 1.751 1.751 1.795 1.795 1.795 1.795 | 41S 46S 46S 49S | 12S | L15 | E15 | 15NP | LTB-1 |
| 2” | 8 9 10 11 12 13 14 15 16 18 20 | 1.670 1.704 1.732 1.760 1.782 1.810 1.834 1.856 1.870 | 2-1/4” | 5-1/4” 6” | 16-9S 16-9S 16-9S 16-11/15S 16-11/15S 16-11/15S 16·11/15S 16-11/15S 16-16S 16-18S 16-20S | 1.635 1.635 1.635 1.743 1.743 1.743 1.743 1.743 1.841 1.908 1.940 | 1.795 1.795 1.795 1.903 1.903 1.903 1.903 1.903 2.001 2.068 2 160 | 49S 51S 56S 63S 63S | 12S | L15 | E15 | 16NP | LTB-1 |
| 管外径 | 1/2–2 in |
|---|
参数以实物和合同为准。胀管器、拔头、刀具等按管子规格配做，订购请提供管外径、壁厚、管板厚度和管材。
产品介绍
选型需要提供
- 管外径
- 管壁厚或 BWG
- 管板厚度
- 管材
- 特殊情况：强化管、厚管板、双管板、折流板、管口凸出、焊接管、管子在管板附近弯曲等
参数取自 Airetool 产品样本（Equipment Group International），订货以原厂规格为准。英制单位：1 in = 25.4 mm。
